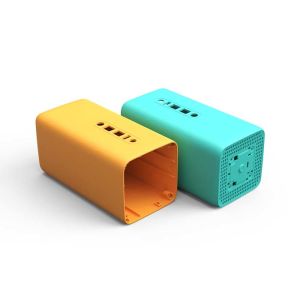

Middle housing (1*1)
No.23394-B
Description:
Our precision cold runner molds are meticulously designed and
manufactured using cutting-edge techniques to fulfill the
requirements of high precision and efficiency. By incorporating
precise runner design and optimized cooling systems, our molds
achieve uniform temperature distribution and rapid cooling,
resulting in a significant reduction in product defects and
production cycles.
Our molds are constructed using high-strength materials and undergo
precision machining processes, ensuring long-lasting durability and
stability. Our team of experienced engineers offers customized
designs tailored to meet specific customer requirements,
accompanied by comprehensive technical support and solutions.
Whether it's in the automotive manufacturing, electronic devices,
or medical equipment industries, our precision cold runner molds
consistently deliver exceptional performance and reliability. This
empowers our customers to achieve high-quality production while
maximizing cost-effectiveness.
Application:
router
Precision electronic equipment
auto parts
medical accessories
shell
Features:
| Runner | Cold runner |
| Gate | Large pin point gate |
| Net weight | 2062kg |
| Size | Length:600 x Width:600 x Height:776 |
| Type | Two-plates mold |
| Standard | LKM |
| IMM tonnage | 450T |
| Material | PC+ABS |
| Part size | 103x103x205mm |
| Part weight | 240g |
Chitwing utilizes advanced processing technology to develop and
manufacture the mold. The mold undergoes a meticulous surface
treatment process, including polishing with 800# sandpaper and
texturing. The large A surface is subjected to EDM (Electrical
Discharge Machining) using VDI27# (Makino), while other large
surfaces are EDM processed with VDI30# (Makino). The cavity and
core are hardened using 1*1/S136 material, ensuring a hardness
level of ≥ 50HRC. The mold surface is meticulously inspected to
ensure it is free from defects. Notably, the mold offers smooth
ejection, a service life of up to 500k shots, and exceptional cost
performance.
Advantage:
We are a publicly traded company that prioritizes delivering
exceptional quality and reliability. With advanced production
equipment and cutting-edge technology, we have the capability to
meet the diverse production requirements of complex molds. Our
dedication to excellence motivates us to continuously integrate the
latest production equipment and technology, refine our production
processes, and improve both our production efficiency and
manufacturing capabilities.
To ensure the highest level of quality and reliability, we place
significant emphasis on selecting high-quality raw materials.
Through meticulous selection of premium-grade raw materials, we
guarantee the superior quality and dependability of every product
we manufacture.
Display diagram
