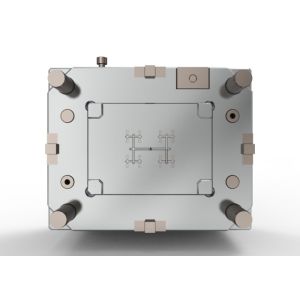

Earphone Charging

Box Light Guide (1*16)

No.24204

The mold net weight is 93kg, and fit 80T machine; the part size is (L)9.6*(W)8.6*(H)5.2mm

and the part weight is 0.2g

Mold size: 250 X 250 X 251mm, standard mold base, side gate; the mold is made of steel with

high purity, and the cavity and core surface has smooth surface with no pits; the A surface polished

to SPI-A1, the inner surface EDM with VDI21# (Makino); harden the cavity and the core with

1*16/S136 to have higher hardness and anti-wearing performance, with stable wall thickness

and stable internal pressure

Features: Cavity ejection pin

Display diagram

  What we do：

Chitwing is focusing on providing custom-made products to world-wide customers, including

product structure design based on customer’s ID, mold design & fabrication, mold trial &

prototyping, MP production and shipment.

At the same time, we can offer 50~100 sets of custom-made mold and standard component to

customers including high precision stamping tool, die-casting tool (Zinc & Alu. Alloy) and high

precision injection mold.

  Equipment we use：

Program for mold design：UG
Mold fabrication：CNC(Makino, Fanuc), EDM(Makino, Charmilles 、Agie)，Wire cut(Makino,

                              Sodick, Agie) etc.
Injection machine：10T～550T
Press machine：40T～300T
Die-casting machine：80T～340T

  Systems we have：

Quality system： ISO9001， ISO13485 (medical device)， IATF16949 (automotive device)
Environmental system：ISO14001
Hazardous substance system： QC080000
Occupational health and safety management system： OHSAS18001

  Products we offer：

3C electronics，Automotive electronics， home appliances , Medical device，Battery, etc.
