key (1*8)

No.19017-B

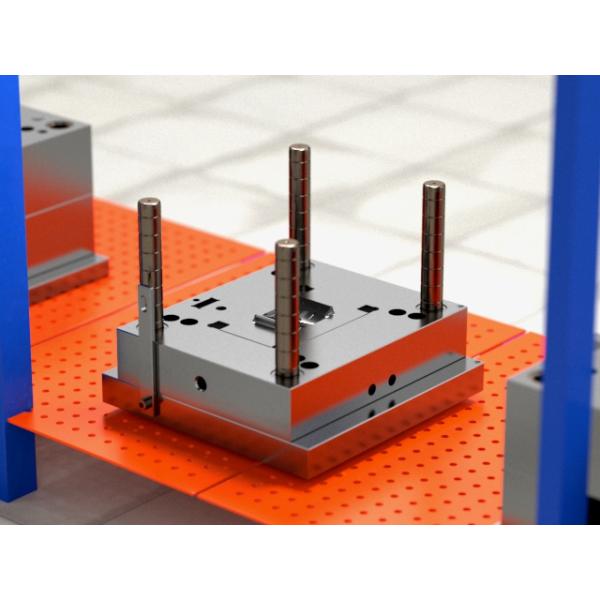

The Chitwing two-plates mold, employing an LKM mold base, offers exceptional performance

and durability. Featuring a side gate for optimal material flow, this mold is designed to have

a lifespan of at least 500,000 shots, ensuring long-lasting service. With a net weight of 155kg

and dimensions of 300mm in length, 300mm in width, and 291mm in height, the mold is

compact and user-friendly. Specifically tailored for a 110T injection molding machine (IMM)

This two-plates mold features a smooth surface, low roughness, and uniform wall thickness.

The surface is mirror EDM finished with VDI 10#, while the cavity and core are hardened using

1*8/S136 for excellent hardness, strength, wear resistance, and corrosion resistance.

The mold has a tool life of up to 500,000 shots.

Display diagram

  What we do：

Chitwing is focusing on providing custom-made products to world-wide customers, including

product structure design based on customer’s ID, mold design & fabrication, mold trial &

prototyping, MP production and shipment.

At the same time, we can offer 50~100 sets of custom-made mold and standard component to

customers including high precision stamping tool, die-casting tool (Zinc & Alu. Alloy) and high

precision injection mold.

  Equipment we use：

Program for mold design：UG
Mold fabrication：CNC(Makino, Fanuc), EDM(Makino, Charmilles 、Agie)，Wire cut(Makino,

                              Sodick, Agie) etc.
Injection machine：10T～550T
Press machine：40T～300T
Die-casting machine：80T～340T

  Systems we have：

Quality system： ISO9001， ISO13485 (medical device)， IATF16949 (automotive device)
Environmental system：ISO14001
Hazardous substance system： QC080000
Occupational health and safety management system： OHSAS18001

  Products we offer：

3C electronics，Automotive electronics， home appliances , Medical device，Battery, etc.
