Transparent Inner Housing (1*1)

No.19015 & 19016 -B

☆ Custom mold base P/N: FCI4050.A140B150C130 is adopted

☆ Better meet the design needs of mold

The Chitwing mold, manufactured in Guangdong, China, is a three-plates mold with a mold

standard of LKM. It has a net weight of 1158kg and is designed to be used with an injection

molding machine (IMM) of 180 (T) tonnage. The mold size measures 400mm in length,

640mm in width, and 541mm in height.

The Chitwing mold, manufactured in Guangdong, China, is a three-plates mold designed for

mass production, focusing on production cost, quality, and cycle time. It incorporates three

slides and three lifters to ensure precise molding. The mold features VDI 18# polishing on

selected surfaces, while the cavity and core are hardened using 1*1/S136 material to achieve

excellent hardness and anti-wear performance. The tool life of the mold can reach up to

500,000 shots.This mold is well-fitted, ensuring no leakage and maintaining stable cavity

pressure. It also facilitates uniform wall thickness in the molded parts. The resulting products

exhibit smooth surfaces, sharp edges, and no burrs. Additionally, the mold enables the creation

of precise threads and consistent thickness throughout the molded parts.

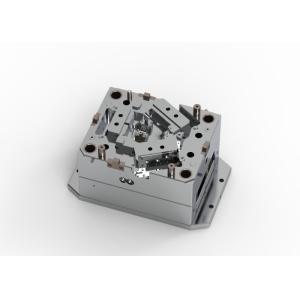

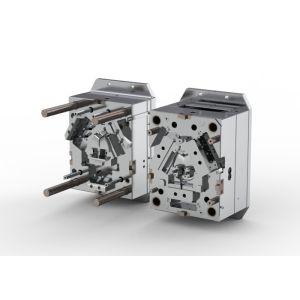

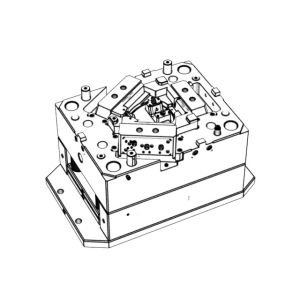

Display diagram

  What we do：

Chitwing is focusing on providing custom-made products to world-wide customers, including

product structure design based on customer’s ID, mold design & fabrication, mold trial &

prototyping, MP production and shipment.

At the same time, we can offer 50~100 sets of custom-made mold and standard component to

customers including high precision stamping tool, die-casting tool (Zinc & Alu. Alloy) and high

precision injection mold.

  Equipment we use：

Program for mold design：UG
Mold fabrication：CNC(Makino, Fanuc), EDM(Makino, Charmilles 、Agie)，Wire cut(Makino,

                              Sodick, Agie) etc.
Injection machine：10T～550T
Press machine：40T～300T
Die-casting machine：80T～340T

  Systems we have：

Quality system： ISO9001， ISO13485 (medical device)， IATF16949 (automotive device)
Environmental system：ISO14001
Hazardous substance system： QC080000
Occupational health and safety management system： OHSAS18001

  Products we offer：

3C electronics，Automotive electronics， home appliances , Medical device，Battery, etc.

  Company Overview：
